*Higher strength than plain aluminum sheet
*Providing mechanical abuse protection for the insulation

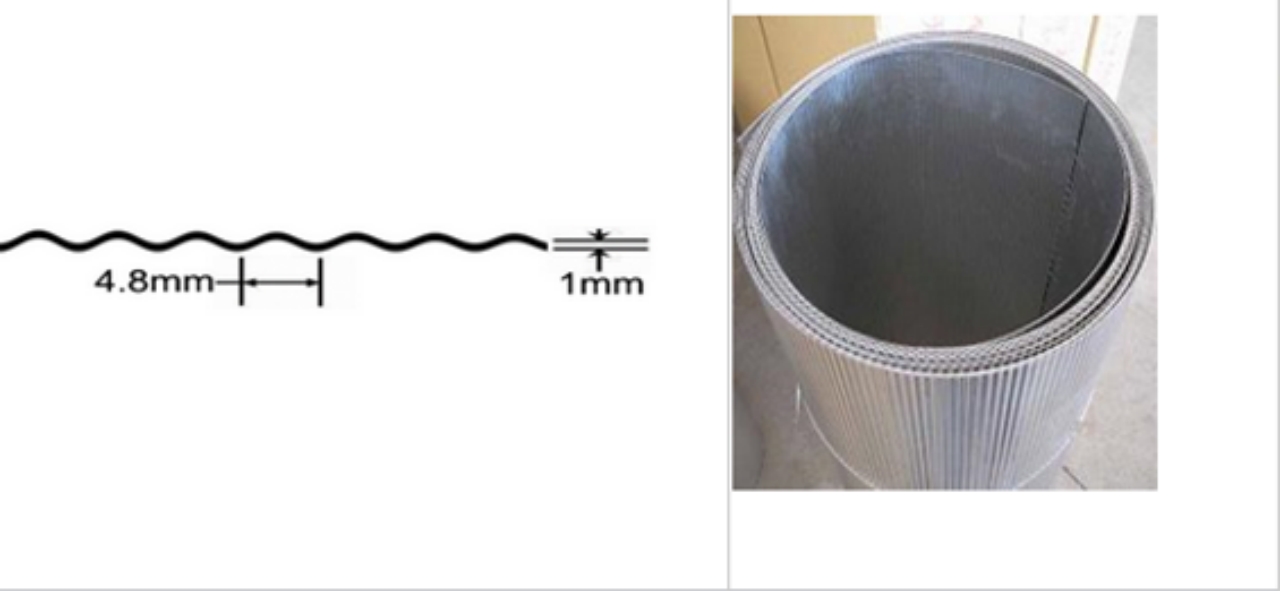

| Item No. | V4.8 | Drawing | Real Picture |
| Type | 3/16” |  | |
| Effect Width(mm) | 1000 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 4.8mm(3/16”) | ||
| Wave Height(mm) | 1mm | ||
| Application | Big dia Pipe insulation jacketing | ||

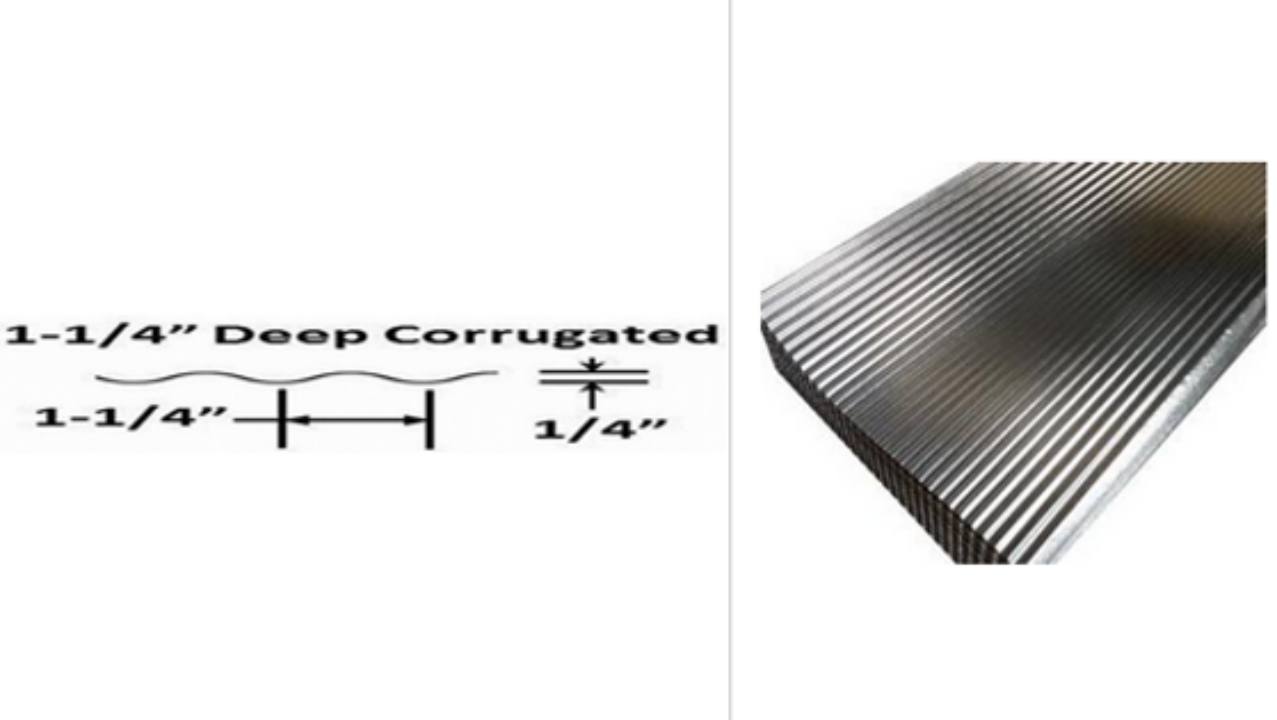

| Item No. | V32 | Drawing | Real Picture |
| Type | 1 1-4” |  | |
| Effect Width(mm) | 940 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 32mm(1 1/4”) | ||
| Wave Height(mm) | 6.35mm(1/4”) | ||
| Application | Small equipment, instruments and tanks | ||

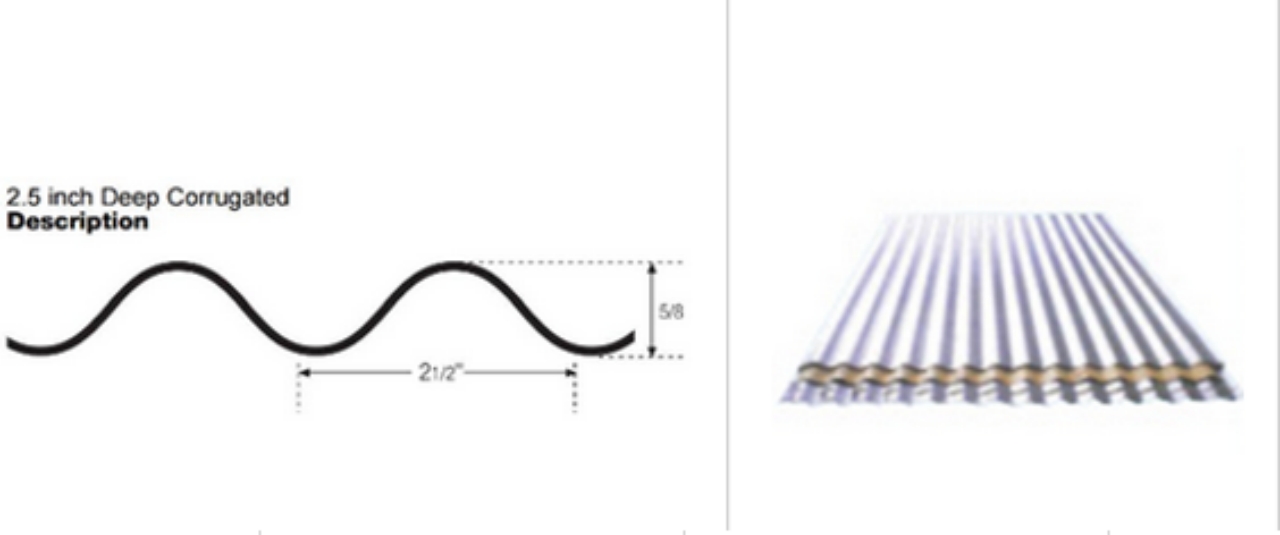

| Item No. | V65 | Drawing | Real Picture |
| Type | 2 1/2” |  | |
| Effect Width(mm) | 900 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 65mm(2 1/2”) | ||
| Wave Height(mm) | 15.8mm(5/8”) | ||
| Application | Big diameter tanks | ||

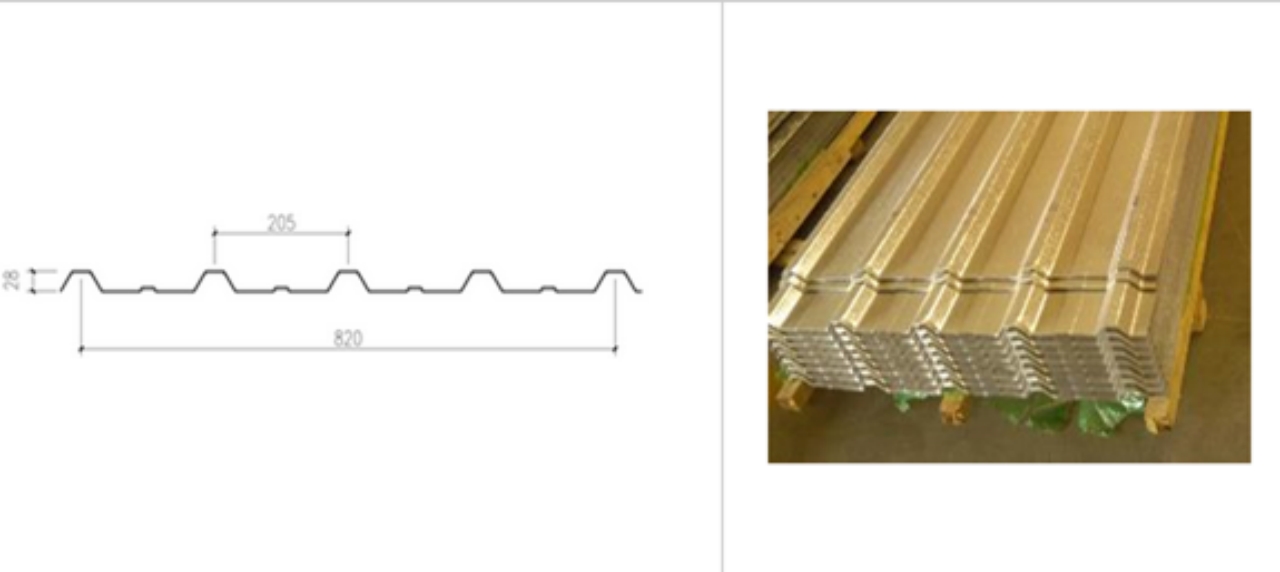

| Item No. | 820 | Drawing | Real Picture |
| Type | 820 |  | |
| Effect Width(mm) | 820 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 205 | ||
| Wave Height(mm) | 28 | ||
| Application | Big diameter tanks | ||

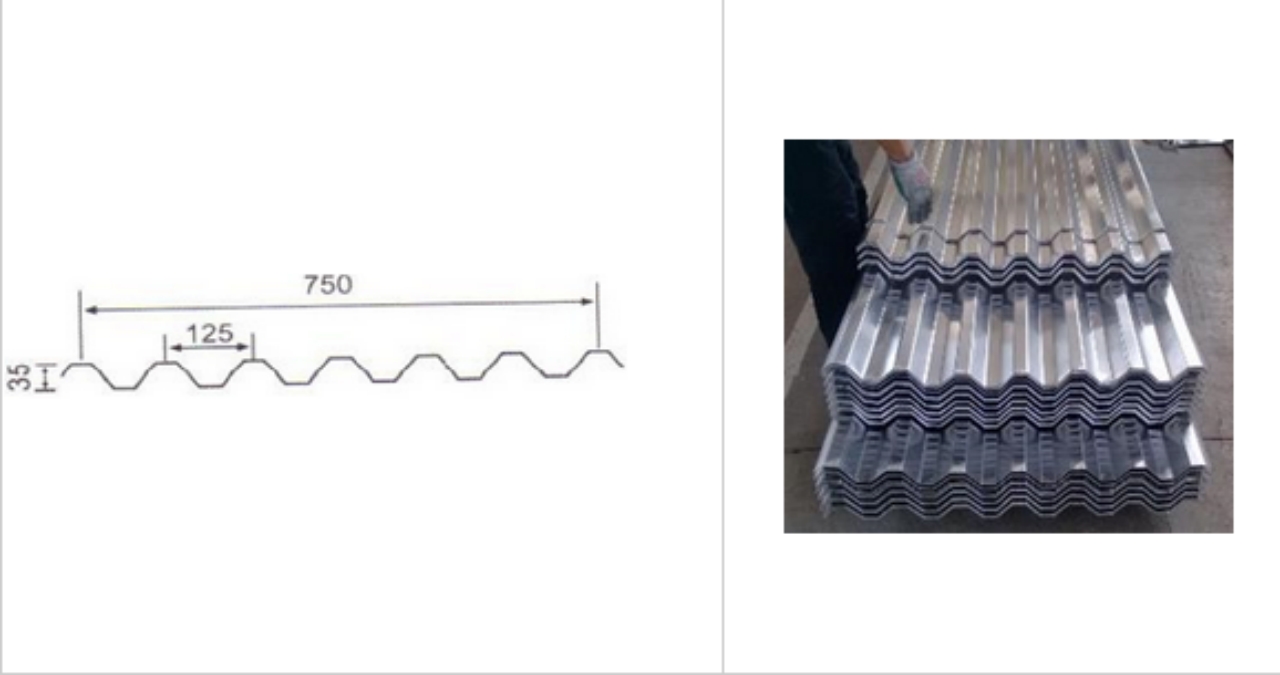

| Item No. | 750 | Drawing | Real Picture |
| Type | 35-125-750 |  | |
| Effect Width(mm) | 750 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 125 | ||
| Wave Height(mm) | 35 | ||
| Application | Tank insulation, wall and roof cladding | ||

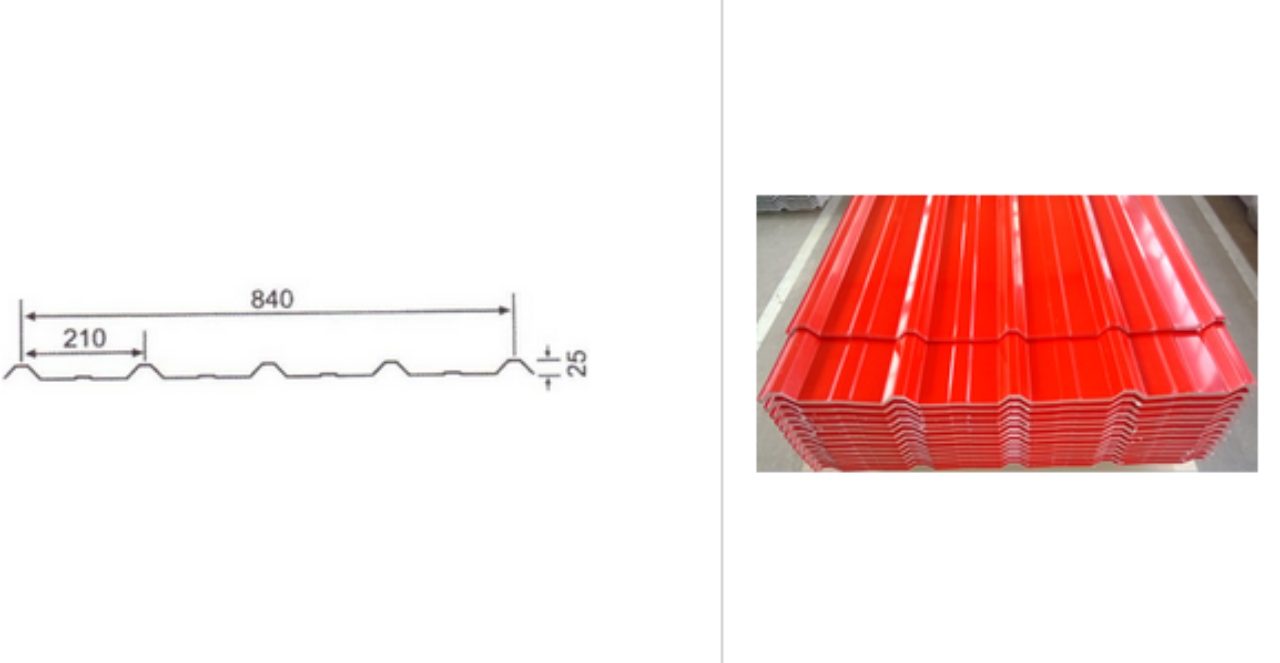

| Item No. | 840 | Drawing | Real Picture |
| Type | 25-210-840 |  | |
| Effect Width(mm) | 840 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 210 | ||
| Wave Height(mm) | 25 | ||
| Application | Tank insulation, wall and roof cladding | ||

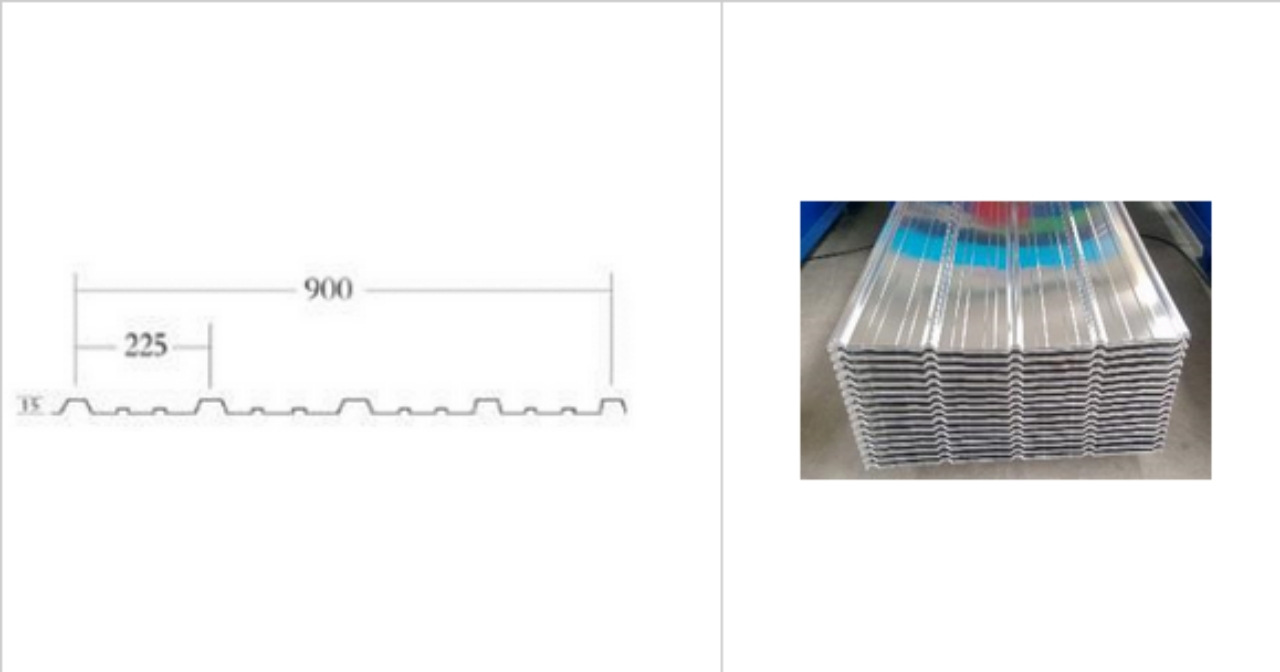

| Item No. | 900 | Drawing | Real Picture |
| Type | 15-225-900 |  | |
| Effect Width(mm) | 900 | ||
| Thickness(mm) | 0.4-1 | ||
| Wave Distance(mm) | 225 | ||
| Wave Height(mm) | 15 | ||
| Application | Tank insulation, wall and roof cladding | ||
